GUIDE THERMAL MONOCULAR TD635LS APEX VISION LRF 640X512

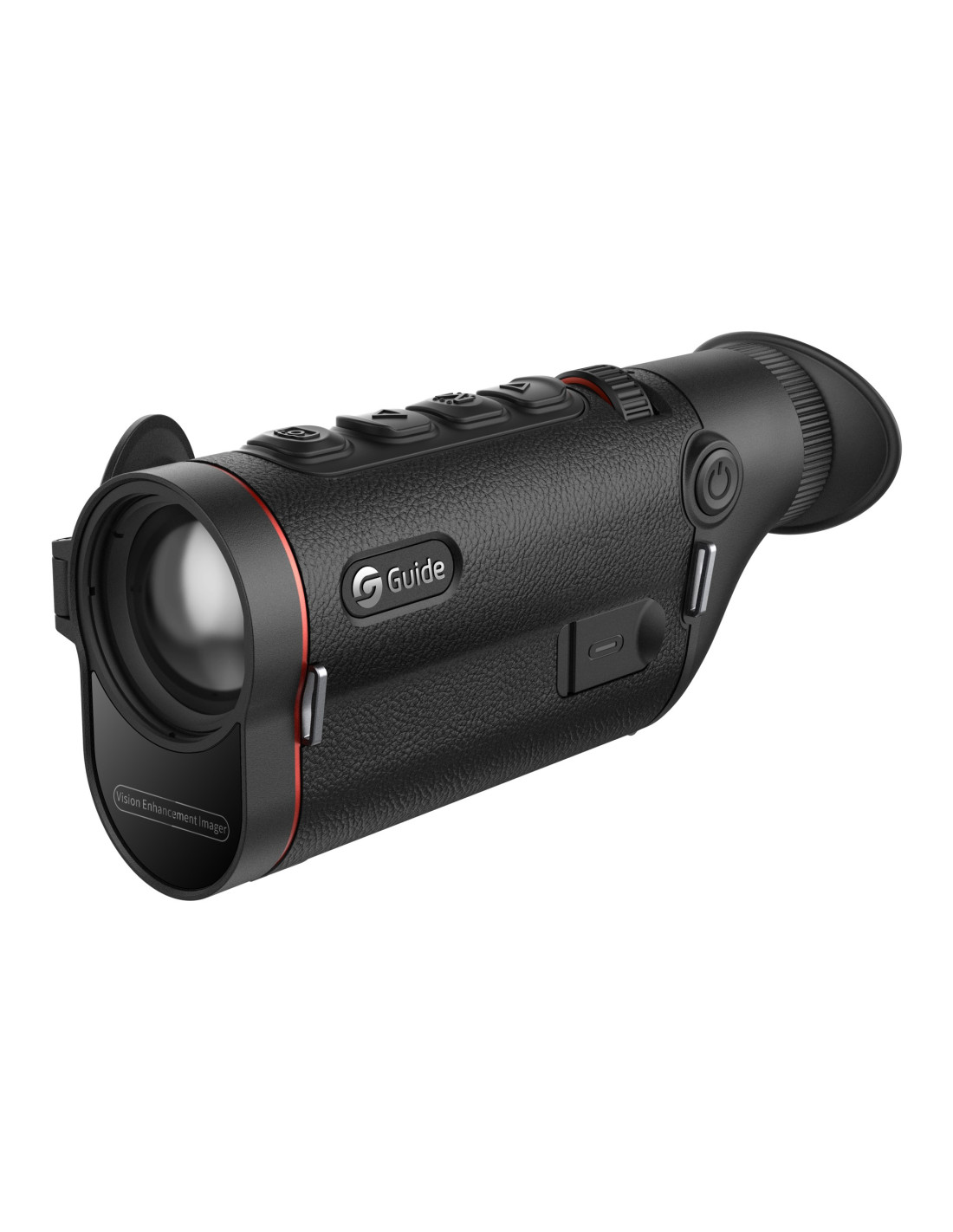

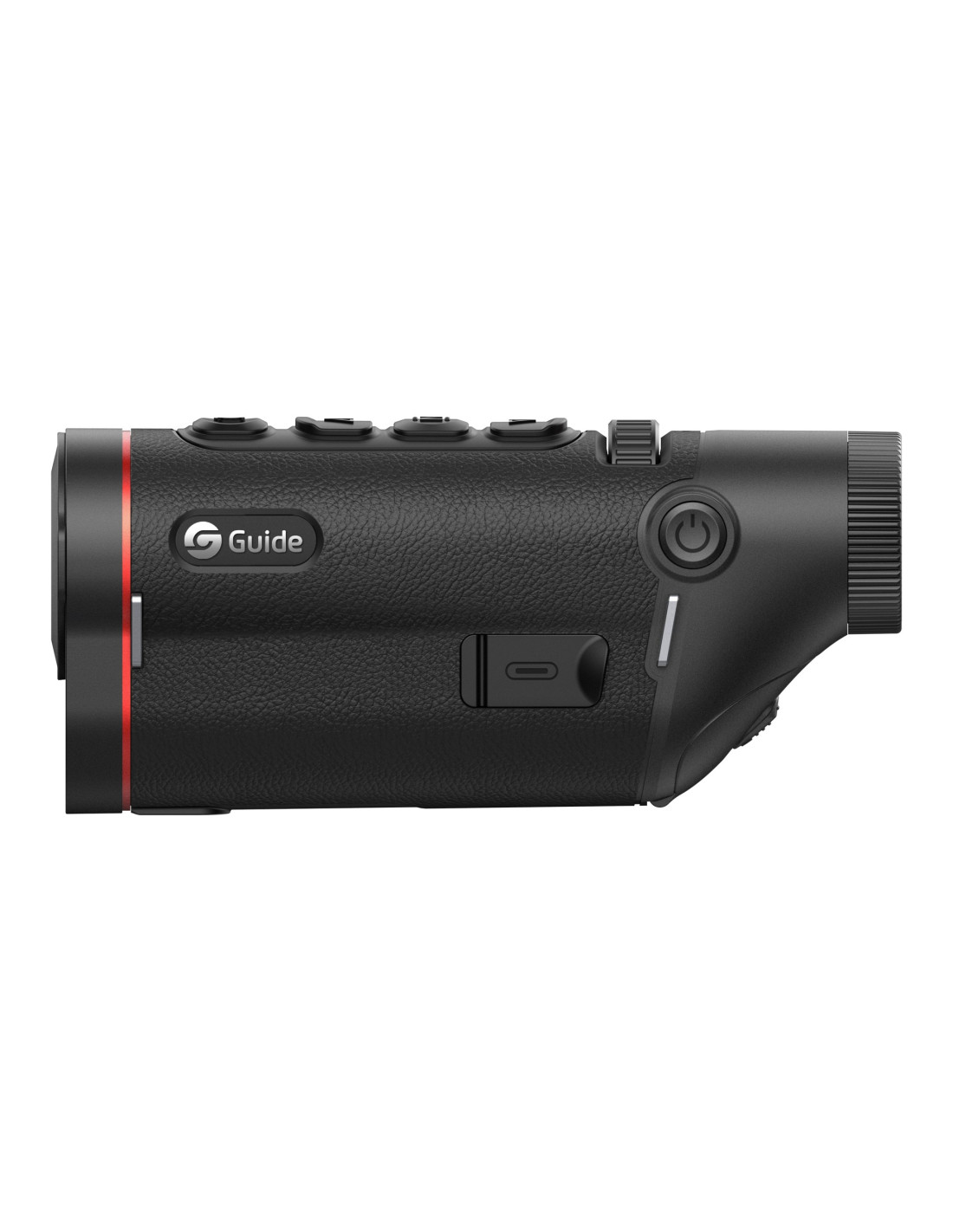

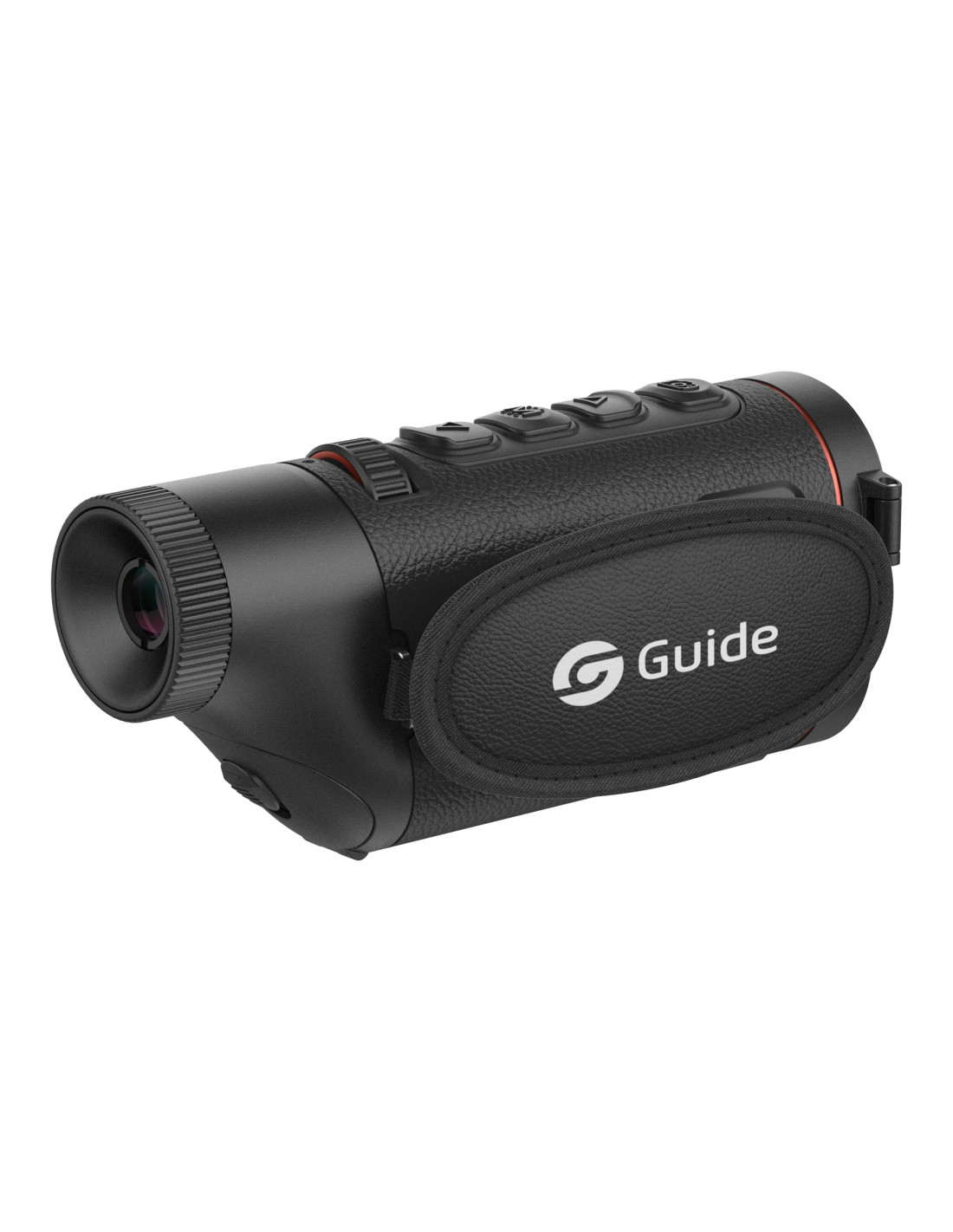

The Guide TD635LS is a thermal monocular with a laser rangefinder from the APEX VISION TD LRF 3.0 series, with a 640×512 pixel sensor and 15 mK NETD. The 35 mm lens gives a wide field for searching and the rangefinder measures distance up to 1200 m. All in a 171 × 54 × 74 mm, 374 g body.

Features

• 640×512 sensor at 12 µm, 15 mK NETD: a detailed image with fine contrast between close temperatures.
• Built-in 1200 m (1300 yards) laser rangefinder: measures the distance to the target you are observing, without changing device.
• 12.5° × 9.4° field, or 22 × 17 m at 100 m, to scan clearings and woodland edges quickly.
• 2.03x to 16.24x magnification and detection up to 1800 m with a 35 mm F1.0 objective lens.
• ApexVision S1 architecture: ApexCore S1 detector, Nexus 1.0 platform and Hyper-Light 2.0 algorithm.
• 0.49-inch AMOLED display at 1440×1080, 7 colour palettes and an eyepiece with −6 to +6 dioptre.
• One hand: focus selector and symmetrical body for right- and left-handed users.
• Up to 10 hours with a replaceable 18650 battery; records photo and video with sound and connects to your phone via Wi-Fi (TargetIR app).

Why choose this model?

The TD635LS brings together the three things most used on a night in the field: a wide field to find the animal, 640×512 resolution to observe it well and laser-measured distance to make the decision. It has the same body and the same weight as the TD435LS (374 g), but with 2.7 times as many pixels.

It is a good balance for those who hunt in mixed terrain. Those who mainly observe at long range in open country have a 50 mm lens in the TD650LS.

Technical specifications

In the box

• TD635LS thermal monocular with rubber eyecup
• Hand strap and neck strap
• Carry pouch and accessory pouch
• Lint-free cleaning cloth
• Battery charger and 2 × 18650 batteries
• 5V 2A adapter with US, UK, Australian and European plugs
• USB-A to USB-C cable
• Quick start guide

How to choose

On the rangefinder monoculars of the TD LRF 3.0 series, measurement always goes up to 1200 m. What changes is the image: the TD435LS has 400×300 and more base magnification; the TD635LS has 640×512 and the widest field; the TD650LS has 640×512 with a 50 mm lens, detection up to 2600 m and 465 g. Without a rangefinder, the equivalent is the TD635S, at 362 g.

Frequently asked questions

What is the range of the Guide TD635LS rangefinder?
It measures distances up to 1200 m (1300 yards), according to the manufacturer.

What lens does the TD635LS have?
A 35 mm F1.0 objective lens, with a 12.5° × 9.4° field and detection up to 1800 m. The 50 mm version is the TD650LS.

Is it different from the TD 633 LRF?
Yes. The TD635LS belongs to the new APEX VISION TD LRF 3.0 series, with a 15 mK sensor and ApexVision S1 architecture. See each model's product page to compare.

How long does the battery last?
Up to 10 hours with a replaceable 18650 battery. Two batteries and a charger come in the box.

Can I share what I see?
Yes. It records photo and video with sound and streams to your phone via Wi-Fi with the TargetIR app.

Can it be mounted on a rifle?
No. The TD635LS is a handheld observation monocular, not a riflescope, and is not mounted on a gun.
